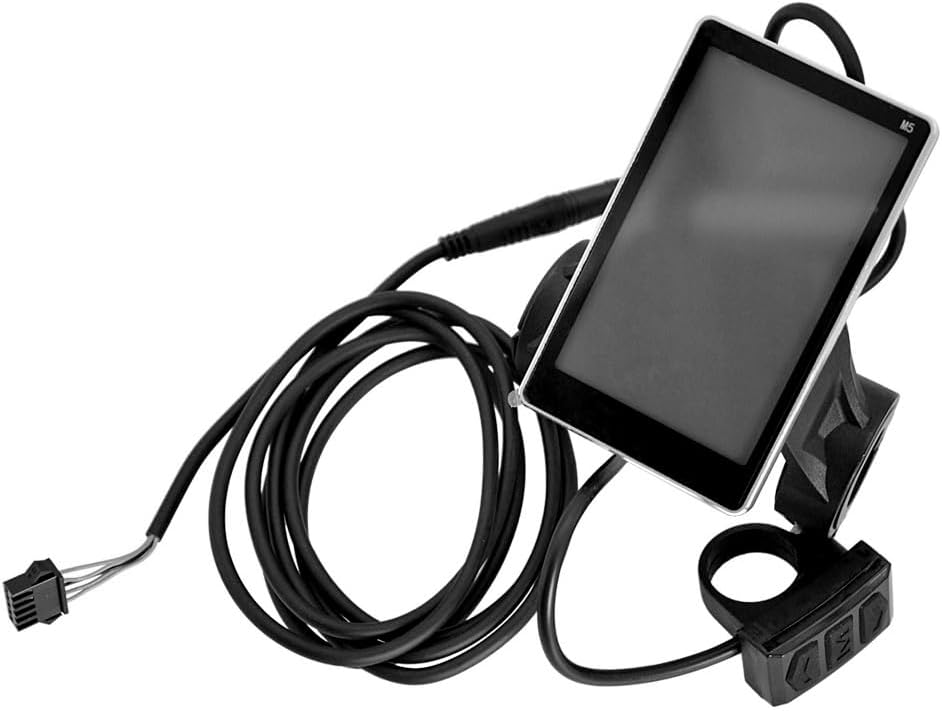

EBike Display, M5 Electric Bike LCD Display Screen 5-pin E-Bike Speedometer Screen Control Panel Electric Scooter Bicycle Ebike Accessories
Product details
| Management number | 216733194 | Release Date | 2026/04/19 | List Price | US$12.80 | Model Number | 216733194 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Features: 1. Display the speed, assistant level, battery capacity, error code, ODO, trip,l ight and single riding time intuitively. 2. The M5 setting includes battery power button, front light button, 6 km/h walking, wheel diameter setting, Max speed setting, sleep time, backlight and voltage setting 3. Note: The smart LCD instrument communication protocol: No. 2 protocol. Wiring: -Red wire: Power + -Blue wire: Power switch -Black wire: Power - -Green wire: RX -Yellow wire: TX Description: Material: ABS Size: 9.4x8.8x6.4cm Line Length: 2m Weight: about 230g Package Includes: 1 x M5 Display
- E-bike meter designed for 22.2mm handlebars, easy to install.Display the speed, assistant level, battery capacity, error code, ODO, trip,l ight and single riding time intuitively.
- E-bike display with M5 5-pin connector for 24V 36V 48V 60V e-bikes and e-scooters
- Display function: Speed display, power level display, power indicator, failure warning, total mileage, single mileage, headlight display, single driving time display
- Control, setting up functions: Power switch control, headlight switch control, 6Km/h point control, wheel diameter setting, maximum speed setting, idle automatic hibernation time setting, backlight brightness setting, voltage level setting
- E-bike instrument LCD display with high performance and low failure rate, cost-effective replacement of e-bike parts
| Color | Black |
|---|---|
| Display | LCD |
| Brand Name | OUGETHER |
| Item Weight | 230 Grams |
| Sensor Type | Speed Sensor |
| Manufacturer | OUGETHER |
| Model Number | 698fe808-9d42-46a0-b4ea-abc34994b039 |
| Mounting Type | Handlebar Mount |
| Item Type Name | EBike Display |
| Native Resolution | 320x240 |
| Included Components | 1 x M5 Display |
| Human Interface Input | Buttons |
| Item Dimensions L x W x H | 3.7"L x 3.46"W x 2.52"H |
| International Protection Rating | IP54 |
