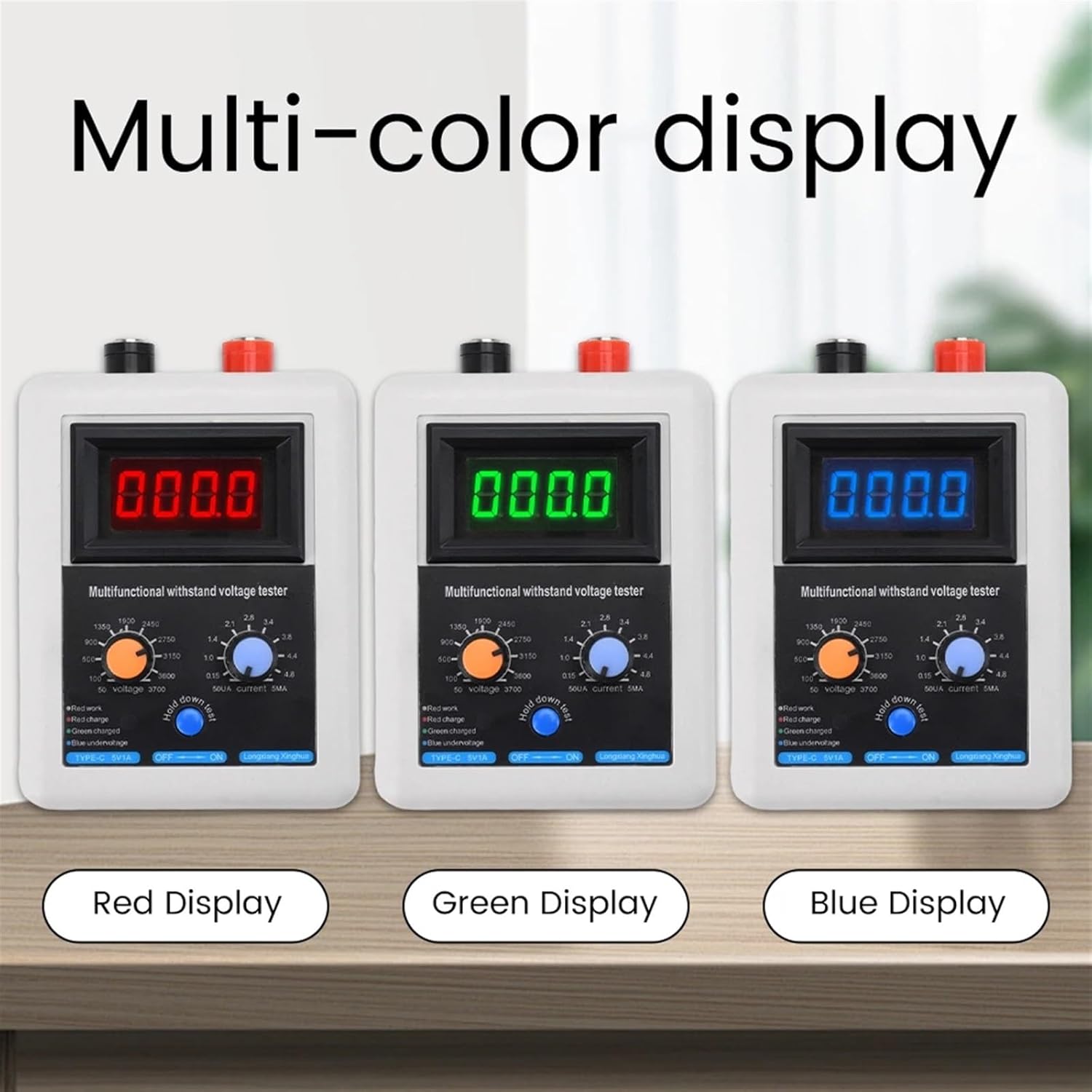

0V-3700V IGBT Voltage Capability Transistor Tester Diode MOS Triode LED Voltage Capability MOV Withstand Voltage Tester(Green)

AmmetersFeatures:1. At the same time, it can test the insulation voltage of the object. Such as switches, keys, connectors between the two pins of the insulation voltage test.2. Compact product3. Easy to carry and store4. Insulation test between windings is also very convenient, such as motor, power frequency , high frequency , phase to phase insulation, insulation test of the shell core5. Widely used to measure: NIMOS/PMOS/IGBT/ Triode/unidirectional thyristor/voltage regulator diode/light emitting diode/rectifier bridge/varistor/ceramic gas discharge tube/electrolytic capacitor/voltage withstand valueParameters:Adjustable output voltage: DC 50V-3700VVoltage display accuracy: 0.3%Output voltage error: 50V, resistance error actual output 3650-3750VAdjustable output current: 50uA-5mAOutput mode: constant voltage, constant current outputMachine maximum power: 5Voltmeter resolution: 0.1V below 100V, 1V above 100VBattery capacity: 700mA lithium batteryCharging current: 550mACharging interface: TYPE-C (red light on charging, green light on full)Charging adapter: 5V1A mobile phone charger can be chargedProtection function: 80 overtemperature protection (high temperature bright blue light)Lithium battery undervoltage: the battery is less than 3.3V blue lightMachine size: 98*70*37cmPackage included:1 x 0V-3700V IGBT Voltage Capability Transistor Tester Diode MOS Triode LED Voltage Capability MOV Withstand Voltage Tester
